| Base | Height | Thickness |
| mm | mm | mm |
| 10 | 5 | 1 |
| 12.4 | 6.6 | 1.2 |
| 14 | 7 | 1 |
| 15 | 8 | 1 |
| 15 | 10 | 1 |
| 15.8 | 9.5 | 2 |
| 17 | 10 | 1 |
| 18 | 8 | 1 |
| 20 | 10 | 1 |
| 20 | 10 | 1.5 |
| 22 | 7.2 | 1.5 |
| 22 | 14 | 0.75 |
| 22 | 14 | 1 |
| 24 | 13 | 1 |
| 25 | 13 | 1 |
| 28 | 16 | 1 |
| 30 | 10 | 1 |
| 30 | 15 | 1 |
| 30 | 15 | 1.5 |
| 32 | 9 | 1 |
| 33 | 10 | 1 |
| 33 | 10 | 1.5 |
| 35 | 15 | 1 |
| 35 | 15 | 1.5 |
| 40 | 10 | 1 |
| 40 | 10 | 1.5 |
| 40 | 20 | 1 |
| 40 | 20 | 1.5 |
| 42.5 | 8.05 | 1 |
| 50 | 20 | 1.5 |
| 50 | 25 | 1 |
| 50 | 25 | 1.5 |
| 55 | 25 | 1 |
| 55 | 25 | 1.5 |
| 58.5 | 8.5 | 1 |
| 60 | 20 | 1.5 |
| 60 | 20 | 2 |
| 60 | 30 | 1.5 |
| 80 | 20 | 1.5 |
(A) Height from 5 to 20 mm
(S) Thickness from 0.8 to 2 mm

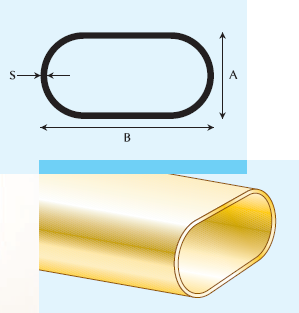

The flat oval tube is characterised by the shape of a rectangular figure whose shorter sides are shaped as semicircles.
The base indicates the external measurement of the base of the rectangle plus the diameter of its perimeter, whereas the height indicates the external measurement of the height of the rectangular part.
Our tubes are proposed in commercial length, approximately in a range between 4.500 mm 5.500 mm. However, they can be cut in a fixed length, e.g. bars of 5.000 mm, or proposed already cut to pieces in the required sizes, i.e. rings of 30 mm.
The packaging can be arranged on request in bundles protected by bubble wrap or in wooden crates.
To know the minimum producible quantity and to agree on the conditions of return please contact our offices.
To know what commercial measures are immediately availables see the warehouse catalog at our subsidiary Comet SpA warehouse
